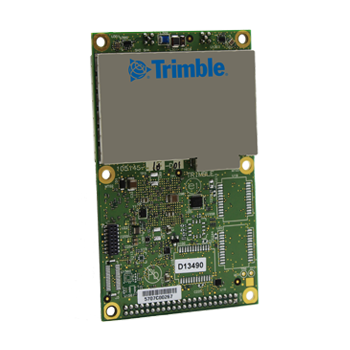

Trimble BD992 GNSS Receiver Board
The BD992 GNSS receiver board from Trimble employs dual-antennas to deliver precise headings and positions that are accurate to the centimeter. As the heading is derived from measurements by a dual-antenna GNSS, this helps overcome problems such as determining the position of the antenna relative to the item of interest and the vehicle.
Description
Overview
The Trimble BD992 is a dual-antenna GNSS receiver board that delivers centimeter accurate positions and precise heading.
When a single antenna GNSS system is used, it is difficult to establish where the position of the antenna relative to the vehicle and item of interest, especially with low dynamics. Although external sensors could be used to overcome this, they have a tendency to drift when static. Using a dual-antenna GNSS system such as the BD992 overcomes this problem and is the right choice from an economic perspective.
Various configurations are available for this module. These include a DGPS L1 unit right up to a 4 constellation triple frequency RTK unit. This makes it easy to select the receiver that is suitable for the specific application. As the features are all password-upgradeable, functionality can be upgraded as requirements change.
With the latest in precision inertial sensors integrated in the Trimble BD992 it becomes a robust navigation solution, rather than simply a GNSS receiver. Key features include a robust moving baseline RTK for precision landing on moving platforms, and high update rate position and heading measurements.
The Trimble BD992 is easy to integrate with existing applications by using a variety of communication ports and standard web browsers.
Features
- 336 Channels per antenna for GNSS support from multi-constellations
- Dual-antenna inputs for exact heading calculations
- Support for OmniSTAR/RTX
- Flexible interfacing with RS232, USB and Ethernet
Technical Specifications
| Channel Information: | 336 Tracking Channels |
| GPS: | L1 C/A, L2E, L2C, L5 |
| BeiDou: | B1, B2, B3 |
| GLONASS: | L1 C/A, L2 C/A, L3 CDMA |
| Galileo: | E1, E5A, E5B, E5AltBOC, E6 |
| IRNSS: | L5 |
| QZSS: | L1 C/A, L1 SAIF, L1C, L2C, L5, LEX |
| SBAS: | L1 C/A, L5 |
| MSS L-Band: | OmniSTAR, Trimble RTX |
| Input Voltage: | 3.3 VDC +5% / -3% |
| Power Consumption: | Typical 1.5 W (L1/L2 GPS + L1/L2 GLONASS) |
| Size: | 100 mm x 60 mm x 11.6 mm |
| Weight: | 60 grams |
| Operating Temperature: | -40 °C to +75 °C |
| Storage Temperature: | -55 °C to 85 °C |
| Vibration: | MIL810F, tailored Random 6.2 gRMS operating Random 8 gRMS survival |
Warranty
Trimble offers a warranty of 1 year warranty on all of it’s products, unless otherwise specified. The warranty ensures that the products are substantially free from defects in materials and workmanship and conform to Trimble’s publicly available specifications for a period on 12 months after the date of purchase. The warranty is covered in more detail in Trimble’s Legal Notices document.
Why Buy from Us?
In business since 2004, Canal Geomatics is an authorized Trimble dealer and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.
Ordering
The BD992 GNSS Receiver Board from Trimble is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
