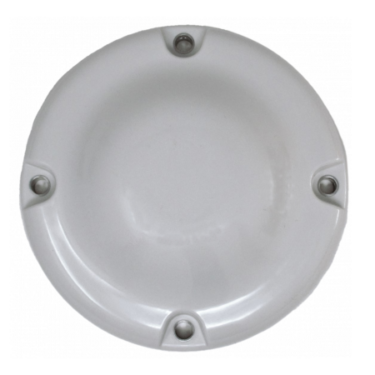

Tallysman VeroStar VSS6037L Surface-Mount Full GNSS Precision Antenna + L-band

The patent-pending VSS6037L surface-mount full GNSS precision antenna employs Tallysman's unique VeroStar™ technology, providing high gain over the full GNSS spectrum: GPS/QZSS-L1/L2/L5, QZSS-L6, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b/E6, BeiDou-B1/B2/B2a/B3, and NavIC-L5, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)], as well as L-band correction services.



Share
Description

Overview

The VeroStar™ VSS6037L surface-mount full GNSS precision antenna is designed for high-accuracy positioning while being light, compact, robust and reliable.

With an exceptionally low roll-off from zenith to the horizon, the VeroStar™ antenna provides the best-in-class tracking of GNSS and L-band correction signals from low elevation angles. In addition, the optimized axial ratio at all elevation angles results in excellent multipath rejection, thus enabling accurate and precise code and phase tracking of GNSS and L-band correction signals.

A wide-band spherical antenna element enables the VeroStar™ to deliver a ±2 mm phase centre variation (PCV), making it ideal for high-precision applications, such as autonomous vehicle navigation (land, sea, and air), machine control, and precision agriculture.

The VeroStar™ antenna features a robust pre-filter and high-IP3 LNA architecture, minimizing de-sensing from high-level out-of-band signals, including 700 MHz LTE, while still providing a noise figure of only 1.8 dB.

The surface-mount antenna has passed a battery of tests (water pressure, altitude, salt fog, shock, drop, and vibration) to ensure it can survive the rigours of day-to-day field use.

The unique features of the VeroStar™ antenna guarantee it can deliver high signal-to-noise ratio (SNR) and highly accurate and precise code and phase tracking of GNSS signals from all elevation angles in the most challenging environments.

Applications

  • High-precision GNSS systems
  • Autonomous vehicle navigation (land, sea, air)
  • Marine navigation
  • RTK/PPP systems
  • Precision agriculture

Features

  • Tight phase centre variation (± 2.0 mm; no azimuth)
  • Low axial ratios from zenith to horizon
  • Low roll-off from zenith to horizon
  • High G/T at low elevation angles
  • Invariant performance from 3.0 to 16 VDC
  • Low current (50 mA)
  • Low noise figure (1.8 dB)
  • Light, compact, and robust design
  • IP67, REACH and RoHS compliant

Benefits

  • Consistent performance across all frequency bands
  • Excellent GNSS tracking from low elevations
  • Extreme accuracy and precision
  • Excellent multipath rejection

Warranty

Calian GNSS (formerly Tallysman Wireless) offers a warranty of 1-3 years on all of it’s products. The warranty ensures that the products are free from defects of materials or workmanship and conform to Calian’s specifications under normal use. Embedded antennas are covered by a one (1) year standard warranty. All housed antennas and accessories (inline amplifiers, splitters, and bias tees) manufactured after January 1, 2020 are covered by a three-year warranty. The warranty is covered in more detail on the Calian GNSS Warranty page.

Why Buy from Us?

In business since 2004, Canal Geomatics is an authorized dealer for Calian GNSS and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.

Ordering

The VeroStar VSS6037L surface-mount full GNSS precision antenna with L-band is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
