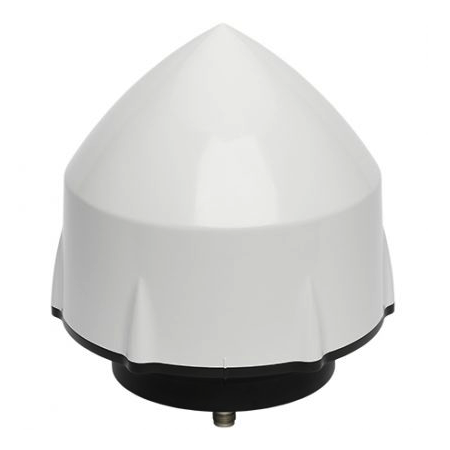

Tallysman VeraPhase VP6335 Triple-Band GNSS Antenna
The VeraPhase VP6335 triple-band GNSS antenna supports coverage for GPS L1 + GPS L5 + GLONASS G1 + Galileo E1 + Galileo E5a + BeiDou B1 + BeiDou B2a + NavIC L5.
Description
Overview
Ideal for high precision reference stations, the VeraPhase VP6335 triple-band GNSS antenna has excellent performance across the full bandwidth of the antenna.
As a leader in the market, the VP6335 provides the lowest axial ratios (horizon to horizon, over all azimuths) across all GNSS frequencies (<0.5 dB at zenith, <2 dB typ. at horizon). Additionally, the VP6335 has an exceptional front to back ratios, a tight Phase Center Variation (PCV), and near constant PCO (Phase Center Offset) for all azimuth and elevation angles, over all in-band frequencies.
The VP6335 provides high-reception gain over the full GNSS spectrum and has a robust pre-filtered Low Noise Amplifier (LNA), with high third order intercept point (IP3) to minimize de-sensing from high-level out-of-band signals, including 700MHz LTE, while still providing a low noise figure.
An uncommitted PCB is available within the base of the antenna for integration of a custom system board such as a PPP or RTK GNSS receiver or other applications.
Applications
- Survey
- High Precision GNSS Systems
- Custom OEM Products
- RTK/PPP Systems
Features
- Low axial ratios from horizon to horizon
- Very Tight Phase Center Variation (<1mm)
- Low current
- Invariant performance from: +2.7 to 24 VDC
- Space in housing for integrated PPP, RTK receiver or other OEM system.
Benefits
- Consistent performance across all frequencies
- Broadest tracking elevation (0° – 180°)
- Extreme precision
- Excellent multipath rejection
- IP67, REACH, and RoHS compliant
- Reduced time to market
Warranty
Calian GNSS (formerly Tallysman Wireless) offers a warranty of 1-3 years on all of it’s products. The warranty ensures that the products are free from defects of materials or workmanship and conform to Calian’s specifications under normal use. Embedded antennas are covered by a one (1) year standard warranty. All housed antennas and accessories (inline amplifiers, splitters, and bias tees) manufactured after January 1, 2020 are covered by a three-year warranty. The warranty is covered in more detail on the Calian GNSS Warranty page.
Why Buy from Us?
In business since 2004, Canal Geomatics is an authorized dealer for Calian GNSS and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.
Ordering
The VeraPhase VP6335 triple-band GNSS antenna is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
