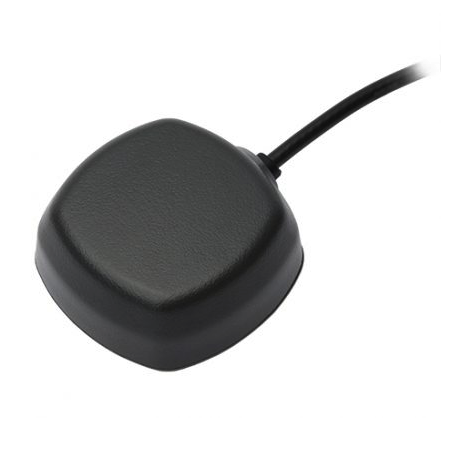

Tallysman TW4039 Single-Band GNSS Antenna (Pre-Filtered)
The TW4039 single band GNSS antenna (pre-filtered) supports coverage for GPS L1, as well as SBAS (WAAS, EGNOS & MSAS).
Description
Overview
Ideal for battery operated positioning and fleet management & asset tracking applications that require protection against close-proximity 700MHz LTE and L-band transmitting antennas, the TW4039 single band GNSS antenna (pre-filtered) is amongst the lowest power devices available, requiring a typical current consumption of just 5.5 mA with constant characteristics over supply voltages from 2.5V to 16V – yet it still performs with an excellent noise figure.
Featuring a precisely tuned, single feed patch element that achieves 40% wider bandwidth than competitive antennas, the TW4039 supports 1 dB RHCP received power across the full frequency. Additionally, the TW4039 has a dual stage Low Noise Amplifier (LNA) with a mid-section SAW that supports a great axial ratio across the full frequency.
The TW4039 also includes an LNA pre-filter, providing enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi.
The TW4039 is housed in an industrial-grade weather-proof enclosure that can be surface mounted via magnet, screws or adhesive material.
Applications
- Battery Operated Monitoring
- Covert Surveillance
- Fleet Management & Asset Tracking
- Satcom Based AVL Solutions
Features
- 5.5 mA current draw
- Invariant response, 2.5 to 16 VDC Supply
- Low Noise 3.3 dB typ.
- Axial ratio: 4 dB max.
- Low gain: 12dB typ.
- IP67 weather proof housing
Benefits
- Longer battery life
- Excellent signal to noise ratio
- RoHS compliant
- Ideal for harsh environments
- Excellent out of band signal rejection
Warranty
Calian GNSS (formerly Tallysman Wireless) offers a warranty of 1-3 years on all of it’s products. The warranty ensures that the products are free from defects of materials or workmanship and conform to Calian’s specifications under normal use. Embedded antennas are covered by a one (1) year standard warranty. All housed antennas and accessories (inline amplifiers, splitters, and bias tees) manufactured after January 1, 2020 are covered by a three-year warranty. The warranty is covered in more detail on the Calian GNSS Warranty page.
Why Buy from Us?
In business since 2004, Canal Geomatics is an authorized dealer for Calian GNSS and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.
Ordering
The TW4039 single band GNSS antenna (pre-filtered) is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
TW4037 – Wideband GPS Antenna – 33-4037-xx-yyyy
TW4039 – Prefiltered Wideband GPS Antenna – 33-4039-xx-yyyy
Where xx = connector type, yyyy = cable length in mm
