Tallysman TW3150 Single-Band GNSS Antenna

The TW3152 single-band GNSS antenna is a high-gain GNSS antenna employing Tallysman's unique Accutenna® technology, covering GPS/QZSS L1, as well as SBAS (WAAS/EGNOS/MSAS).

REQUEST PRICING

Overview

Ideal for high-density, telecommunications tower timing applications, where high levels of near-out-of-band interfering signals are common, the TW3150 single-band GNSS antenna provides excellent circular polarized signal reception, great multi-path and out-of-band signal rejection. Additionally, with a high gain Low Noise Amplifier (LNA) of 50 dB, the antenna is able to support long cable runs often necessary for tower installation.

The TW3150 features a customizable dual-feed, wide-band patch element, with a dual-stage Low Noise Amplifier (LNA), and provides an excellent axial ratio that is constant across the full frequency, superb phase linear response and tight phase centre variation.

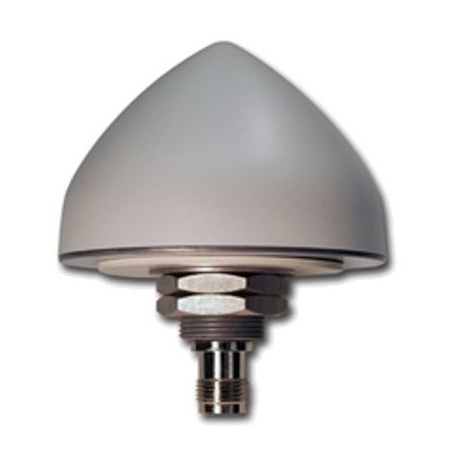

The TW3150 is housed in a permanent mount industrial grade weather-proof enclosure, available in conical or flat radome styles and in grey or white colours. Two options for pole mounting are available an L-Bracket or a Pipe Mount.

To minimize performance impact from signal jamming threats, the TW3150 is compatible with Tallysman’s Anti-Jamming add-on, which modifies the radiation pattern of the GNSS antenna to eliminate signals arriving from -10° to +15° from horizon, while slightly increasing the gain of the antenna at zenith.

If you need enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi, the alternative TW3152 provides these additional benefits with an LNA pre-filter.

Applications

  • Timing systems
  • Long cable runs

Features

  • Dual Feed Patch Antenna
  • Low Loss SAW Pre-Filter
  • Great axial ratio: 1 dB typ.
  • Low noise LNA: 1.5dB typ.
  • High gain LNA: 50 dB typ.
  • Low current: 25 mA typ.
  • Wide voltage input range: 2.7 to 26 VDC

Benefits

  • Great out of band rejection
  • Excellent multipath rejection
  • Excellent circular polarisation
  • Excellent signal to noise ratio
  • Increased system accuracy
  • Ideal for harsh environments
  • IP67, RoHS and REACH compliant

Warranty

Calian GNSS (formerly Tallysman Wireless) offers a warranty of 1-3 years on all of it’s products. The warranty ensures that the products are free from defects of materials or workmanship and conform to Calian’s specifications under normal use. Embedded antennas are covered by a one (1) year standard warranty. All housed antennas and accessories (inline amplifiers, splitters, and bias tees) manufactured after January 1, 2020 are covered by a three-year warranty. The warranty is covered in more detail on the Calian GNSS Warranty page.

Why Buy from Us?

In business since 2004, Canal Geomatics is an authorized dealer for Calian GNSS and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.

Ordering

The TW3150 embedded single-band GNSS antenna is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
