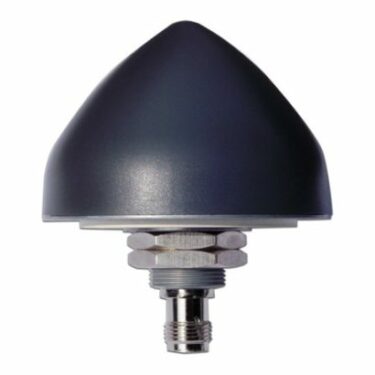

Tallysman TW3885LXF Dual-Band (L1/L5) GNSS Antenna

Description

Overview

The TW3885LXF dual-band (L1/L5) GNSS antenna features a precision-tuned, twin circular dual-feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wideband LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output. The TW3885LXF offers excellent axial ratio and a tightly grouped phase centre variation.

Tallysman’s eXtended Filter (XF) antenna technology has been designed to mitigate out-of-band signals and prevent GNSS antenna saturation. The radio frequency spectrum has become more congested as new LTE bands are activated and their signals or harmonic frequencies [e.g. 800MHz x 2 = 1600MHz (GLONASS-G1)] can affect GNSS antennas and receivers. In North America, planned Ligado signals at 1525 – 1536 MHz can especially impact GNSS antennas that support space-based L-band correction services (1539 – 1559 MHz). New LTE signals in Europe [Band 32 (1452 – 1496 MHz)] and Japan [Bands 11 and 21 (1476 – 1511 MHz)] have also been observed to interfere with GNSS signals. In addition, Inmarsat satellite communication (uplink: 1626.5 – 1660.5 MHz) can also affect GNSS signals.

Ideal for timing, autonomous vehicle tracking and guidance, precision agriculture, and other applications where precision matters, the TW3885LXF provides superior multipath signal rejection, a linear phase response, and tight phase centre variation (PCV).

The TW3885LXF is housed in a through-hole mount, weatherproof enclosure for permanent installations. L-bracket (PN 23-0040-0) or pipe mount (23-0065-0) are available. A 100-mm ground plane is recommended for all installations.

Applications

• Autonomous vehicle tracking and guidance
• Precision GNSS position
• Precision agriculture
• Dual-frequency RTK and PPP receivers
• Law enforcement and public safety

Features

• Very low noise preamp (< 2.5 dB typ.)
• Low axial ratio (< 2.0 dB typ.)
• Tight phase centre variation
• High-gain LNA (35 dB typ.)
• Low current (32 mA typ.)
• ESD circuit protection (15 kV)
• Invariant performance from 2.5 to 16 VDC
• IP69K, REACH, RoHS compliant

Benefits

• Excellent multipath rejection
• Increased system accuracy
• Excellent signal-to-noise ratio
• Excellent interference mitigation

Warranty

Calian GNSS (formerly Tallysman Wireless) offers a warranty of 1-3 years on all of it’s products. The warranty ensures that the products are free from defects of materials or workmanship and conform to Calian’s specifications under normal use. Embedded antennas are covered by a one (1) year standard warranty. All housed antennas and accessories (inline amplifiers, splitters, and bias tees) manufactured after January 1, 2020 are covered by a three-year warranty. The warranty is covered in more detail on the Calian GNSS Warranty page.

Why Buy from Us?

In business since 2004, Canal Geomatics is an authorized dealer for Calian GNSS and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.

Ordering

The TW3885LXF dual-band (L1/L5) GNSS antenna is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
