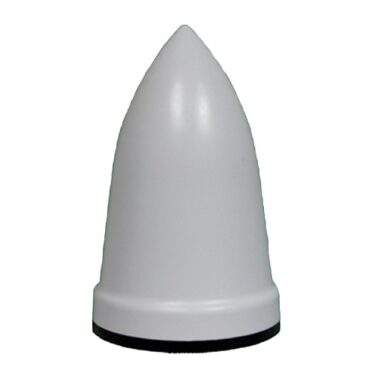

PCTEL GPS-TMG-26N GPS Timing Reference Antenna

The GPS-TMG-26 timing reference antennas are made to address the attenuation issues of congested cell-site applications. They feature multi-stage filtering and a proprietary quadrifiliar helix design to provide superior out-of-band rejection and lower elevation pattern performance than traditional patch antennas.



Share
Description

Overview

PCTEL GPS-TMG-26 GPS timing reference antennas feature a 26 dB amplifier specifically designed to support long-lasting, trouble-free deployments in congested cell-site applications.

The proprietary quadrifiliar helix design, coupled with multi-stage filtering provides superior out-of-band rejection and lower elevation pattern performance than traditional patch antennas.

Their unique radome shape sheds water and ice, while eliminating problems associated with bird perching. The antenna may be purchased by itself or with pipe mounting hardware. Custom models or site kits options are also available.

This antenna is made of materials that fully comply with provisions stipulated by EU directives RoHS 2002/95/EC.

Models

  • GPS-TMG-26N – Does not include mounting hardware.
  • GPS-TMG-26NMS – Includes universal mounting hardware consisting of collar (GPS-TMG-MNT) and pipe clamp (GPS-TMG-LMNT).
  • GPS-TMG-26NCS – Includes economy collar mount (GPS-TMG-MRNMNT).

Features

  • Powerful attenuation mitigation – Via low noise, high gain 26dB amplifier
  • Superior filtering – Quadrifiliar helix design with multi-stage filtering provides effective out-of-band rejection and lower elevation
  • pattern performance
  • Protection from the elements – Unique radome shape prevents water, ice and bird perching issues
  • Rugged – materials comply with provisions stipulated by EU directives RoHS 2002/95/EC

Applications

  • Congested cell sites

Technical Specifications

Electrical
Frequency Range: 1575.42 +/- 10 MHz
Antenna Gain: 3.5 dBic
Nominal Impedance: 50 ohms
VSWR: ≤1.5:1
Polarization: Right Hand Circular
Mechanical
Antenna Dimensions: 5.0 in H x 3.2 in D
(126 mm x 81 mm)
Shipping Dimensions: 7.5 in L x 4.4 in W x 3.8 in D
(190 mm x 112 mm x 96 mm)
Antenna Weight: 0.6 lbs (0.3 kg)
Shipping Weight: 1.9 lbs (0.9 kg)
Connector: N, female (one – bottom fed)
Mount:
  • GPS-TMG-26N – Does not include mounting hardware
  • GPS-TMG-26NMS – Includes universal mounting hardware consisting of collar (GPS-TMG-MNT) and pipe clamp (GPS-TMG-LMNT)
  • GPS-TMG-26NCS Includes economy collar mount (GPS-TMG-MRNMNT)

All mounting options fit pipes of 1-1.45 in (25-37 mm) maximum diameter.

Radome Color: White
Environmental
Temperature Range: -40 °C to +85 °C (operating)
Humidity: 95%

Ordering

GPS-TMG-26 GPS timing reference antennas from PCTEL are available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
