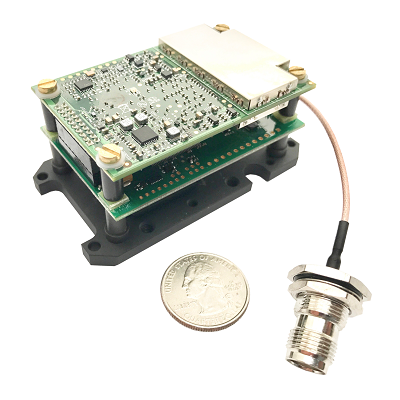

Inertial Labs INS-B-OEM Basic
The INS-B-OEM Basic from Inertial Labs is a GPS-Aided Inertial Navigation System (INS) that contains an advanced single antenna GNSS receiver, a barometer, 3 ultra-high performance MEMS accelerometers and 3 advanced MEMS gyroscopes.
Description
Overview
The INS-B-OEM Basic from Inertial Labs is the OEM version of a new generation INS that provides position, velocity and absolute orientation (heading, pitch & roll) for any device on which it is mounted. Horizontal and vertical position, velocity and orientation are determined with high accuracy for both motionless and dynamic applications.
The INS-B-OEM Basic is compact, light weight and high performance. It is temperature calibrated within its operational temperature range to ensure tactical grade performance in a wide range of environments and applications.
The INS-B-OEM contains the new on-board sensors fusion filter, state of the art navigation/guidance algorithms and calibration software from Inertial Labs. It is an ideal solution for flight control and remote sensing (mapping, survey and inspection with LiDAR, optical camera).
Features
- Commercially exportable GPS-Aided Inertial Navigation System
- High precision IMU (1 deg/hr gyroscopes and 5 micro g accelerometers Bias in-run stability)
- Supports signals from GPS, GLONASS, Galileo, BeiDou, SBAS, DGPS and RTK
- Compatibility with LiDARs (Velodyne, RIEGL, FARO)
- Trigger for optical camera
Technical Specifications
| Supported Signals | |
| GPS: | L1, L2, L5 |
| GLONASS: | L1, L2 |
| BeiDou: | B1, B2, B3 |
| Galileo: | E1, E5 |
| SBAS: | Yes |
| DGPS: | Yes |
| RTK: | Yes |
| Accuracy | |
| Heading: | 1 deg (SP); 0.03 deg (PPK) |
| Pitch & Roll: | 0.1 deg (SP); 0.006 deg (PPK) |
| IMU: | Tactical-grade 1 deg /hr Gyroscopes 0.005 mg accelerometers Bias in-run stability |
| Physical | |
| Size: | 85 x 47 x 36 mm |
| Weight: | 115 g |
| Supply Voltage: | 9 – 36 VDC |
| Power Consumption: | 3 W |
| Environmental | |
| Operating Temperature: | -40 °C to +70 °C |
| Storage Temperature: | -50 °C to +85 °C |
| Vibration & Shock: | MIL-STD-810G |
Warranty
Inertial Labs products are covered under their 15-month standard warranty. Inertial Labs will repair or replace products with design or manufacturing defects, for a period of 15 months from the date of purchase.
Why Buy from Us?
In business since 2004, Canal Geomatics is an authorized dealer for Inertial Labs and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.
Ordering
The INS-B-OEM Basic MEMS INS from Inertial Labs is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
