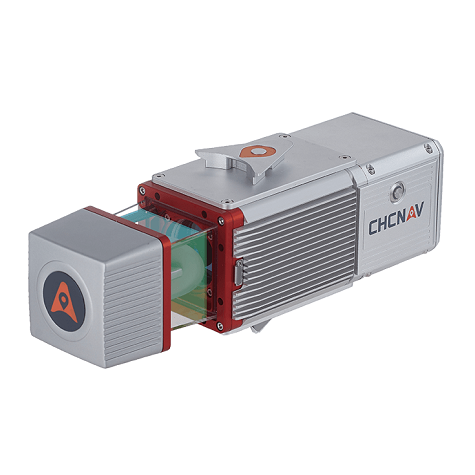

CHCNAV AlphaUni 300 LiDAR Payload
The most flexible and accurate LiDAR solution miniVUX UAV family scanners onboard.
Description
Overview
The AlphaUni 300 LiDAR payload is a multi-platform LiDAR system belonging to the Alpha mobile mapping series that has been designed and improved by CHCNAV based on many years of research and data capture experience.
The AlphaUni 300 is a fully integrated system with a high-precision laser scanner featuring Riegl’s unique Waveform-LiDAR technology and a high-accuracy inertial navigation system, ready for demanding surveying missions (either in the air or on the ground) requiring the highest data quality.
LiDAR weight is a constraint for any drone. The drone needs to lift the entire payload, if not, no data acquisition is possible! The lighter the unit, the higher the productivity, because your UAV can fly longer.
Users can select either the miniVUX-1 or miniVUX-2 UAV for higher data density. Equipped with industry-leading GNSS and IMU sensors, the AlphaUni 300 provides the best combination of point cloud density, precision and survey-grade accuracy.
The AlphaUni 300 can be mounted on various platforms within 5 minutes. Platforms can include different models of UAVs, fixed-wing and multi-rotor VTOLs UAS, vehicles, backpacks, USVs and boats, enabling data collection in the most challenging environments.
Equipped with a unique 8 km UHF data transmission, the parameters of AlphaUni 300 can be set remotely. The operating status of the system can be observed wirelessly in real time, reducing mission preparation time and improving operational efficiency.
Features
- One of the lightest LiDAR payloads in its class (2.1 kg total weight)
- Integrated premium scanners for high data quality
- Supports multi-platform installations
- Long range UHF modem onboard
Technical Specifications
| General | |
| Absolute Hz & V Accuracy: | < 0.050 m RMS |
| Accuracy Conditions: | Without control points, @100 m flight altitude AGL |
| Mounting: | Vehicle independent solution, quickly install & release design, easily switch between airborne, vehicle and backpack mode |
| Weight: | 2.1 kg |
| Dimensions: | 31.86 cm x 11.0 cm x 11.0 cm 12.2 in x 4.33 in x 4.33 in |
| Communications: | 1 x synchronization port for 2nd GNSS antenna |
| Remote Control: | up to 8 km, wireless control of instrument parameters and data recording in real time Operation frequency: 433.00 MHz |
| Point Density on UAV Setup 4 m/s (14.4 km/h) Speed: | 40 pts/sqm @ 100 m AGL 80 pts/sqm (optional upgrade) |
| Laser Scanner | |
| Laser Class: | 1 (in accordance with IEC 60825-1:2014) |
| Max. Range, Reflectivity > 60%: | 290 m |
| Max. Range, Reflectivity > 20%: | 170 m |
| Minimum Range: | 3 m |
| Accuracy: | 15 mm |
| Precision: | 10 mm |
| Field of View: | 360°, selectable |
| Maximum Scan Rate: | 100 000 pts/sec upgrade to 200 000 pts/sec |
| Scan Speed (selectable): | Up to 100 scans/sec |
| Positioning and Orientation | |
| GNSS System: | Multiple GPS, GLONASS, Galileo, BeiDou, SBAS and QZSS constellation, L-Band, single and dual antenna support |
| IMU Update Rate: | Standard 200 Hz (user selectable up to 600 Hz) |
| Position Accuracy NO GNSS Outage: | 0.010 m RMS horizontal, 0.010 m RMS vertical, 0.005 degrees RMS pitch/roll, 0.010 degrees RMS heading |
| Wheel Sensor (DMI): | Yes, optional |
| Imaging | |
| Camera Type: | Modular upgrade options: DSLR, thermal, multispectral, LB5+ 360 spherical camera for vehicle mount |
| Airborne Default Camera Setup: | CHC AS-C420 (calibrated Sony A7 RII) |
| Resolution: | 7952 x 5304, 42.4 MP, 5 fps |
| Environmental | |
| Operating Temperature: | -10°C to +40°C |
| Storage Temperature: | -20°C to +50°C |
| IP Rating: | IP64 |
| Operating Humidity: | 80%, non-condensing |
| Electrical | |
| Input Voltage: | 24 V |
| Power Consumption: | 32 W |
| Power Source: | Depending on UAV battery. External battery in for car setup, also support direct vehicle power source |
Ordering
The AlphaUni 300 LiDAR payload from CHCNAV is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
