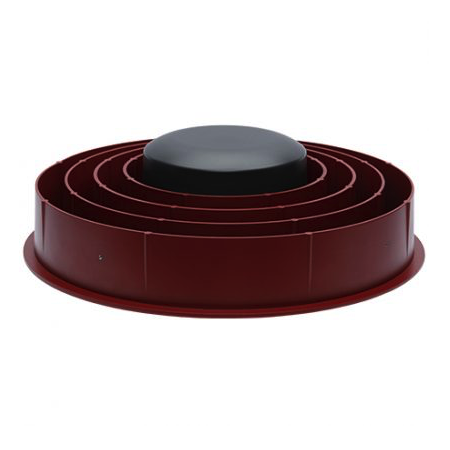

Tallysman VeraChoke VC6050 Full GNSS Antenna with L-Band
The VC6050 VeraChoke antenna employs Tallysman's unique VeraPhase technology covering the full GNSS spectrum: GPS/QZSS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2/B2a/B3, QZSS L6, NavIC L5, SBAS (WAAS/EGNOS/GAGAN/MSAS) and L-Band correction services.
Description
Overview
The patented VeraChoke 6050 antenna is a full GNSS spectrum antenna. It has consistent performance (gain, axial ratio, PCV, and
PCO) across the full bandwidth of the antenna. It provides the lowest axial ratios (horizon to horizon, over all azimuths) across all GNSS
frequencies (<0.3 dB at zenith, <3 dB typ. at horizon). It has an exceptional front to back ratios, high efficiency (>80%), a tight PCV, and near constant PCO for all azimuth and elevation angles, over all inband frequencies.
The VC6050 provides high receive gain over the full GNSS spectrum: Low GNSS band (1164 MHz to 1300 MHz), L-band correction services
(1525 MHz to 1559 MHz) and High GNSS band (1559 MHz to 1610 MHz).
It has a robust pre-filtered LNA, with high IP3 to minimize de-sensing from high-level outof-band signals, including 700MHz LTE, while still providing a low noise figure.
The antenna is compatible with both large and small SCIGN radomes.
Applications
- Survey
- RTK / PPP systems
- High Precision GNSS systems
- Reference Networks
- Monitoring Stations
Features
- Low axial ratio from horizon to horizon
- Very Tight Phase Center Variation (<1.5 mm)
- Invariant performance from: +2.7 to 24 VDC
- Space in housing for integrated PPP, RTK receiver or other OEM system
Benefits
- Consistent performance across all frequencies
- Broadest tracking elevation (0° – 180°)
- Extreme precision
- Excellent multipath rejection
- IP67, REACH, and RoHS compliant
- Reduced time to market
Warranty
Calian GNSS (formerly Tallysman Wireless) offers a warranty of 1-3 years on all of it’s products. The warranty ensures that the products are free from defects of materials or workmanship and conform to Calian’s specifications under normal use. Embedded antennas are covered by a one (1) year standard warranty. All housed antennas and accessories (inline amplifiers, splitters, and bias tees) manufactured after January 1, 2020 are covered by a three-year warranty. The warranty is covered in more detail on the Calian GNSS Warranty page.
Why Buy from Us?
In business since 2004, Canal Geomatics is an authorized dealer for Calian GNSS and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.
Ordering
The VeraChoke VC6050 is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
