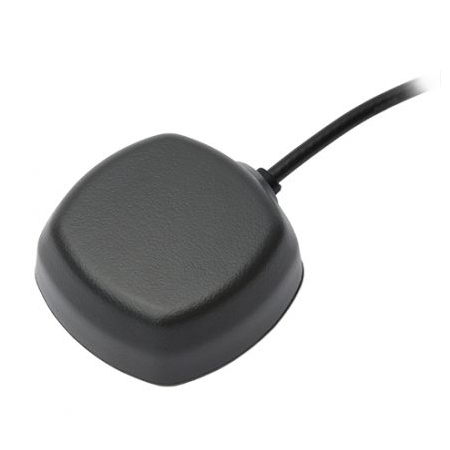

Tallysman TW4020 Single-Band GNSS Antenna

Description

Overview

Featuring a precisely tuned, single feed patch element that achieves 40% wider bandwidth than competitive antennas, the TW4020 single band GNSS antenna supports 1 dB RHCP received power across the full frequency. Additionally, the TW4020 has a dual stage Low Noise Amplifier (LNA) with a mid-section SAW that supports a great axial ratio across the full frequency.

The TW4020 is housed in an industrial-grade weather-proof enclosure that can be surface mounted via magnet, screws or adhesive material.

If you need enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi, the alternative TW4022 provides these additional benefits with an LNA pre-filter.

Applications

• Cost Sensitive Positioning
• Fleet Management amp; Asset Tracking
• Covert surveillance

Features

• 40% wider bandwidth, small footprint
• Axial ratio: 1dB typ (GPS)
• Low noise LNA: 1 dB
• High rejection SAW filter
• High gain: 28 dB typ.
• Wide voltage input range: 2.5 to 16 VDC
• IP67 weather proof housing

Benefits

• Increased system accuracy
• Excellent signal to noise ratio
• RoHS compliant
• Ideal for harsh environments
• Excellent out of band signal rejection

Warranty

Calian GNSS (formerly Tallysman Wireless) offers a warranty of 1-3 years on all of it’s products. The warranty ensures that the products are free from defects of materials or workmanship and conform to Calian’s specifications under normal use. Embedded antennas are covered by a one (1) year standard warranty. All housed antennas and accessories (inline amplifiers, splitters, and bias tees) manufactured after January 1, 2020 are covered by a three-year warranty. The warranty is covered in more detail on the Calian GNSS Warranty page.

Why Buy from Us?

In business since 2004, Canal Geomatics is an authorized dealer for Calian GNSS and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.

Ordering

The TW4020 single band GNSS antenna is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
