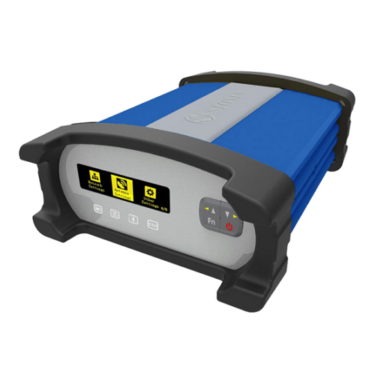

Stonex SC2200 GNSS Receiver
The SC2200 GNSS reference receiver from Stonex is now available starting at $7,150 for a limited time. Please complete the Request Pricing form for an official quote.
Description
Overview
The Stonex SC2200 GNSS reference receiver is able to track GPS, GLONASS, Galieo, BeiDou, QZSS, IRNSS and SBAS signals as well as L-Band. Encased in a rugged enclosure, the SC2200 can be used a a GNSS reference station in even the toughest environments.
The SC2200 is designed to be used either as stand-alone reference station or as part of a series of reference stations. The Stonex SC2200 can be easily configured using a web interface, so a software interface is not required. Moreover, it has a wide OLED display making it easy for any user to configure.
The SC2200 is fully compatible with most common GPS network software and is typically used as an NTRIP server. It also works seamlessly with the Stonex software NTRIP CASTER. It manages many NTRIP connected rovers and, because of its rugged lightweight design, it can be powered by either DC Battery or AC Network to support a temporary GPS network (i.e. construction sites).
The SC2200 GNSS reference receiver runs on a rechargeable 13,600 mAh lithium battery and has a working time of up to 20 hours. It supports raw data logging with up to 100 Hz update rate. This device has 32 GB of internal memory which allows for the collection and storage of large amounts of data. Available communications include: WiFi and Bluetooth.
Features
- Tracks GPS, GLONASS, Galileo, BeiDou, QZSS and IRNSS signals as well as L-Band
- Proven Stonex GNSS technology
- Lithium battery that can last up to 20 hours between charges
- Wi-Fi, Bluetooth and Web UI
- Rugged enclosure for operation in harsh environments
Technical Specifications
| Receiver | |
| Channels: | 555/800 |
| GPS: | L1 C/A, L1C, L2C, L2P, L5 |
| GLONASS: | L1, L2, L3 |
| BeiDou: | B1, B2, B3, ACEBOC |
| Galileo: | E1, AltBOC, E5a, E5b, E6 |
| QZSS: | L1 C/A, L1C, L2C, L5, LEX |
| IRNSS: | L5 |
| SBAS: | Yes |
| L-Band: | Atlas H10/H30/Basic (optional) |
| Position Rate: | 5 Hz, optional up to 100Hz |
| Signal Reacquisition: | < 1 s |
| Cold Start: | Typically < 60 s |
| Hot Start: | Typically < 10 s |
| Internal Memory: | 32 GB, multi storage sessions |
| Positioning | |
| High Precision Static Surveying | |
| Horizontal: | 2.5 mm + 0.1 ppm RMS |
| Vertical: | 3.5 mm + 0.4 ppm RMS |
| Code Differential Positioning | |
| Horizontal: | 0.25 m RMS |
| Vertical: | 0.45 m RMS |
| SBAS Positioning | |
| Horizontal: | 0.50 m RMS |
| Vertical: | 0.85 m RMS |
| Real Time Kinetic (<30 km) – Network Surveying | |
| Fixed RTK Horizontal: | 8.0 mm + 1 ppm RMS |
| Fixed RTK Vertical: | 15 mm + 1 ppm RMS |
| System Configuration | |
| Operating System: | Linux |
| Processor: | AM3354/td> |
| Power Supply | |
| Battery: | Rechargeable lithium battery, 7.2 V – 13,600 mAh |
| Voltage: | 9 to 28 V DC external power input |
| Working Time: | Up to 20 hours |
| Charge Time: | Typically 15 hours |
| Physical | |
| Dimensions: | 222 mm x 164 mm x 79 mm |
| Weight: | 2.0 kg |
| Operating Temperature: | -40°C to 65°C (-40°F to 149°F) |
| Storage Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Waterproof/Dustproof: | IP67 |
| Shock Resistance: | Designed to endure a 1.2 m pole drop on concrete floor with no damage |
| Vibration: | Vibration resistant |
Why Buy from Us?
In business since 2004, Canal Geomatics is an authorized dealer for Stonex and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.
Ordering
The SC2200 GNSS reference receiver from Stonex is available through Canal Geomatics. If you would like more information regarding this product, feel free to get in touch with us by completing the Request Pricing form.
