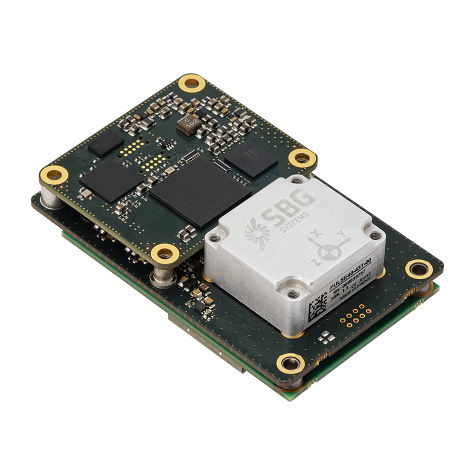

SBG Quanta Plus INS/GNSS
Quanta Plus INS/GNSS from SBG Systems is a GNSS-aided Inertial Navigation System with optimal size for direct georeferencing.
Description
Overview
Quanta Plus INS/GNSS from SBG Systems combines a tactical MEMS IMU with a high performance GNSS receiver to get reliable position and attitude even in the toughest GNSS environments.
Its miniature OEM form factor, and stellar performances makes it the perfect tool for mapping applications where size and weight are a concern but also demand accurate and reliable measurement, such as UAV surveying near buildings, or backpack based mobile mapping.
Quanta Plus also benefits from easy integration within our post-processing software: Qinertia.
Features
- High resilience to harsh GNSS environments including ionosphere perturbations, jamming and multipath.
- Built-in Motion profiles that optimize the INS for each application.
- Ethernet and PTP (or PPS) for easy integration with external sensors such as LiDAR or camera.
- Complete suite of integration tools for OEM (configuration API, compatibility with binary and ASCII protocols…).
Technical Specifications
| System Performance | |
| Roll/Pitch: | 0.015° (RTK), 0.01° (PPK), 0.04° (GNSS Outage 60s (PPK) |
| Heading: | 0.04° (RTK), 0.03° (PPK), 0.05° (GNSS Outage 60s (PPK) |
| Position: | 0.01 m + 0.5 ppm (RTK), 0.01 m + 0.5 ppm (PPK), 0.04 m (GNSS Outage 60s (PPK) |
| GNSS | |
| Features: | SBAS, RTK, PPK |
| GPS: | L1 C/A, L2, L2C, L5 |
| GLONASS: | L1 C/A, L2 C/A, L2P, L3 |
| Galileo: | E1, E5a, E5b |
| BeiDou: | B1I, B1C, B2a, B2I, B3I |
| QZSS: | L1 C/A, L2C, L5 |
| SBAS: | Yes |
| Update Rate: | PVT: 5 Hz, RAW 1 Hz |
| Cold Start: | < 24 s |
| Interfaces | |
| Aiding Sensors: | GNSS, RTCM, NTRIP, Odometer, DVL |
| Protocols: | NMEA, ASCII, sbgECom (binary), REST API |
| Ethernet: | Full duplex (10/100 base-T), PTP/NTP, NTRIP, Web interface, FTP |
| Datalogger: | 8 GB or 48 h @ 200 Hz |
| Serial Ports: | 5x TTL UART, full duplex |
| CAN: | 1x CAN 2.0 A/B bus, up to 1 Mbps |
| Output Rate: | 200Hz (IMU, INS) |
| I/O: | 5x Inputs: PPS, Events in up to 1 kHz 2x Outputs: SYNC out, PPS, Virtual odo LEDs drivers for status display |
| Connectors: | 44 pin contacts, 1.27 mm pitch, SMD 2x u.FL for antennas |
| Physical | |
| Dimensions: | 51.5 mm x 78.75 mm x 20 mm |
| Weight: | 76 g |
| Environmental | |
| Operating Temperature: | -40 °C to +85 °C |
| Operating Vibrations: | 8 g RMS (MIL-STD-810G) |
| IMU Sensor Range: | 490°/s | 40g |
| Operational Limits: | 500 m/s, 18 km altitude |
| MTBF: | 150,000 hours (computed) |
| Electrical | |
| Power Supply Range: | 5.0V DC +/- 5% |
| Power Consumption: | < 3.5 W |
| Antenna Ports: | 5V DC – max 150 mA per antenna, Gain: 17 – 50 dB |
Warranty
All products from SBG Systems come with a 2-year warranty. This warranty can be extended up to 5 years. The warranty is covered in more detail in the SBG Services page.
