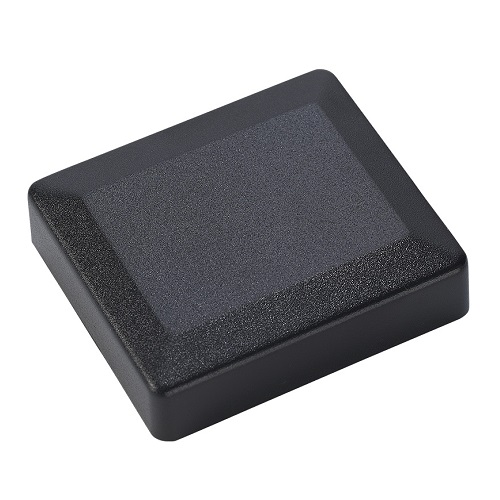

PCTEL AGPS26MM GPS Fleet Tracking Antenna
The PCTEL AGPS26MM GPS fleet tracking antenna provides outstanding support for many vehicle tracking applications. It features an electrically shielded LNA PCB assembly that is permanently encased in a UV-stable, black radome, and offers various mount options for maximum versatility.
Description
Overview
The PCTEL AGPS26MM GPS fleet tracking antenna features an electrically shielded LNA PCB assembly that is permanently encased in a UV-stable, black radome. Providing 26 dB of gain and 3 to 5 Vdc operation. This active GPS antenna provides outstanding GPS support for many vehicle tracking applications. This magnetic mount antenna can be ordered with additional screw or tape mount hardware for maximum installation flexibility.
Features
- Wide selection — Multiple connector options; compatible with most GPS systems
- Rugged — Electrically shielded LNA PCB assembly encased in a UV-stable radome
- Versatile — Various mount options: magnetic mount standard, screw or tape mount hardware optional
- Low profile housing — Minimizes visibility
Applications
- Vehicle tracking
Technical Specifications
| Signal Tracking | |
| GPS: | L1 |
| Electrical | |
| Frequency Band: | 1575.42 ± 1.023 MHz |
| Gain: | Typical at zenith: +5.0 dBic (-1.0 dBic minimum at 10° elevation) |
| VSWR: | < 2.0:1 maximum |
| Nominal Impedance: | 50 ohms |
| Amplifier Gain: | 26 dB |
| Polarization: | Right Hand Circular |
| Out of Band Rejection: | fo=1575.42 MHz fo ± 20 MHz: 7 dB typical fo ± 50 MHz: 20 dB typical fo ± 100 MHz: 30 dB typical |
| Noise Figure: | 1.8 dB typical 2.2 dB maximum |
| Axial Ratio: | 3.0 dB typical |
| Current Draw: | 20 mA, maximum at 3-5 Vdc (9 mA typical) |
| DC Voltage: | 3-5 Vdc: 50 mV p-p ripple (max) |
| Mechanical | |
| Dimensions: | 2 in L x 1.77 in W x 0.55 in D (50.8 mm x 44.9 mm x 13.9 mm) |
| Weight: | 4.09 ± 0.35 oz |
| Connector: | SMA Plug |
| Mount: | Magnet |
| Housing Material: | Black, UV-stable plastic, ABS |
| Environmental | |
| Temperature Range: | -40 °C to +85°C (operating) |
| Humidity: | 10 to 95% RH |
Ordering
The AGPS26MM GPS fleet tracking antenna from PCTEL is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
