NovAtel 42GNSSA-XT-1 ARINC 743 Footprint Multi-Frequency GNSS Antenna
The NovAtel 3GNSSA-XT-1 is a multi-constellation, multi-frequency active GNSS antenna in an ARINC 743 form factor.
Description
Overview

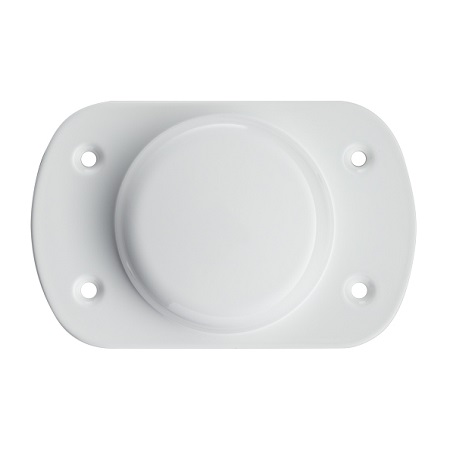

The 42GNSSA-XT-1 ARINC 743 footprint GNSS antenna is a multi-frequency antenna for assured position, navigation and timing (PNT) reception. This wideband antenna operates across GPS, GLONASS, Galileo and BeiDou frequencies for true Global Navigation Satellite System (GNSS) reception.
The baseplate is compatible with an ARINC 743 mounting hole and footprint requirements. An O-ring seal between the antenna and your platform ensures easy installation.
The product family is available in passive and active (amplified) configurations. The active circuitry is designed to support a wide range of input voltages with low current consumption. The passive design is ideal for installations where the antenna is located close to the receiver.
Benefits
- Standard ARINC 743 mounting footprint for easy installation
- Multi-frequency GNSS coverage for assured PNT
Features
- Maximum multi-frequency, multi-constellation coverage
- ARINC 743 compatible mounting holes and footprint
- Passive or active (amplified) configurations available
- DC power input through RF connector
- Connector options available
- Paint color options available
Technical Specifications
| Electrical | |
| Frequency Range | |
| L1 GLONASS: | 1598.06-1609.31 MHz |
| L1 GPS: | 1575.42 ± 15 MHz |
| E1 Galileo: | 1575.42 ± 15 MHz |
| B1 BeiDou: | 1575.42 ± 15 MHz |
| L-Band Correction: | 1539-1559 MHz |
| L2 GPS: | 1227.60 ± 15 MHz |
| L2 GLONASS: | 1242.94-1251.69 MHz |
| E5b Galileo: | 1207.14 ± 10.23 MHz |
| B2/B2b BeiDou: | 1207.14 ± 10.23 MHz |
| L5 GPS: | 1176.42 ± 12 MHz |
| E5a Galileo: | 1176.42 ± 12 MHz |
| B2a BeiDou: | 1176.42 ± 12 MHz |
| L5 NavIC: | 1176.42 ± 12 MHz |
| VSWR: | <2.0:1 |
| Impedance: | 50 ohms |
| Polarization: | RHCP |
| Mechnical & Environmental | |
| Weight: | 12.4 oz (typical) |
| Temperature: | -55 °C to +85 °C |
| Altitude: | 70,000 ft |
| Vibration: | >30 Grms |
| Typical LNA Performance | |
| LNA Noise Figure: | 3.5 dB |
| LNA P1dB Out: | +8 dBm |
| LNA DC Power: | (2.7 – 15) V <40 mA |
| Limiting & Filtering | |
| Power Handling: | 1 Watt CW |
