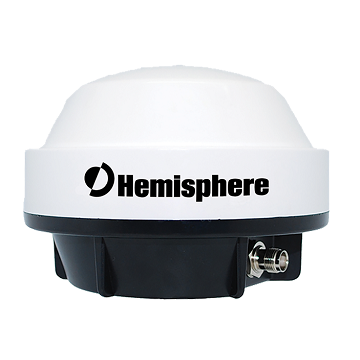

Hemisphere A43 GNSS Antenna
The Hemisphere GPS A43 antenna supports multiple constellations and multiple frequencies. It employs Hemisphere GPS leading edge Eclipse GPS technology to provide reliable and precise positioning and navigation information.
Description
Overview
The A43 GNSS antenna from Hemisphere GNSS supports multiple constellations and multiple frequencies. It employs Hemisphere GNSS leading edge Eclipse GPS technology to provide reliable and precise positioning and navigation information. It can track both GPS and GLONASS signals, as well as the new Galileo A/B signals. Moreover, it supports correction services such as SBAS, Beidou and OmniSTAR.
The A43 antennas rugged design allows it to work with a wide range of applications, including applications that are used in machine control, construction surveys, guidance and navigation.
The A43 supports enhanced multipath mitigation and can reduce multipath interferences, which happens when signals are being reflected off surfaces such as trees, windows of building and the ground.
Features
- Hemisphere GPS leading edge Eclipse GPS technology
- Support multiple constellations and multiple frequencies
- Precise RTK results
- Robust design
- Improved multipath mitigation that can reduce interferences significantly
- Enclosure is rated IP69K
- Shock and vibration resistant is EP455 compliant
Technical Specifications
| Channels: | GPS L1/L2 and L5, GLONASS L1/L2, Galileo E1 and E5, SBAS, OmniSTAR, Beidou |
| Dimensions: | 14.5 cm (D) x 10.4 cm (H) |
| Weight: | 0.73 kg |
| Mount: | One-inch coarse thread (5/8 inch adapter is available) |
| Connector (RF): | TNC(Female) |
| Operating temperature: | -40 °C to +85 °C |
Warranty
Hemisphere GNSS products come with a one-year warranty. The warranty, provided by Hemisphere GNSS, means products are guaranteed against defective material and workmanship under normal use for a period of 12 months from the date of shipment. Accessories come with a similar 90-day warranty. The warranty is covered in more detail in the Hemisphere GNSS Service Policy document.
Why Buy from Us?
In business since 2004, Canal Geomatics is an authorized dealer for Hemisphere GNSS and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.
Ordering
The A43 GNSS antenna from Hemisphere GNSS can be ordered from Canal Geomatics. Please contact us using the Request Pricing form for additional information.
