Antcom 7NF-6.29CG1215P-XS-X 7-Element GPS L1/L2 CRPA
The 7NF-6.29CG1215P-XS-X 7-element CRPA from Antcom offers support for GPS (L1, L2) with cable outputs.
Description
Overview
The 7NF-6.29CG1215P-6S-X product family from Antcom is a 7-element Controlled Reception Pattern Antenna (CRPA) for GPS L1 and L2 coverage. The array includes a center reference (REF) element and six auxiliary (AUX) elements equally spaced around the reference element.

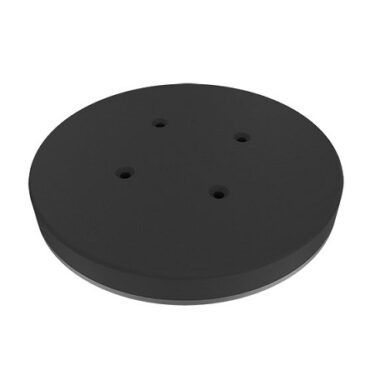

This CRPA offers an easy platform upgrade from a Fixed Reception Pattern Antenna (FRPA). It includes four mounting holes located and sized according to standard FRPA design.
Each CRPA element is connected to a cable output terminated in an SMA connector; this enables close spacing of the antenna outputs, minimizing any platform modifications required. The REF cable is phase-matched to the AUX cables internal to the product but appears longer exterior to the product for easier REF channel identification in tight installation conditions.
The 7NF-6.29CG1215P-XS-X CRPA can be customized to meet your specific requirements.
Benefits
- Designed for ease of upgrade with minimal platform changes
- 7-channel CRPA for high-level anti-jam (AJ) performance
Features
- GPS L1/L2 with M-Code support
- SMA cable outputs with a longer REF cable for easy identification
- Paint color options available
- Passive antenna (no power requirement)
Technical Specifications
| Electrical | |
| Frequency Bands: | GPS L1/L2 |
| Mechanical | |
| Dimensions: | 6.3 in (D) x 0.75 in (H) |
| Weight: | 20.8 oz (typical) |
| Colour Options: | Gloss White, Lusterless Gray, Camo Green, Lusterless Black, Desert Tan |
Warranty
Antcom products are covered under their one-year standard warranty. Antcom will repair or replace any product which does not materially conform to Antcom’s specifications or that is significantly defective in materials or workmanship, for a period of 12 months from the date of shipment. The warranty is covered in more detail in the Antcom Standard Terms and Conditions document.
Why Buy from Us?
In business since 2004, Canal Geomatics is an authorized dealer for Antcom and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.
Ordering
The 7NF-6.29CG1215P-XS-X 7-element GPS L1/L2 CRPA from Antcom is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
