Antcom 42G1215AF-XX-X GNSS Antenna
The 42G1215AF-XX-X GNSS antenna family from Antcom comes in an ARINC 743 footprint and offers support for GPS (L1/L2) with high filtering.
Description
Overview

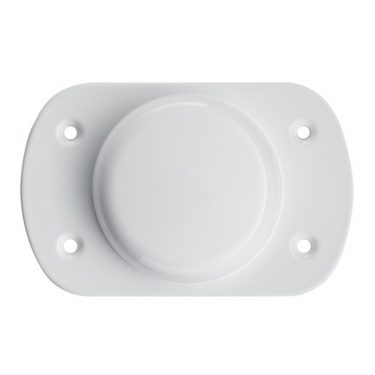

The 42G1215AF-XX-X GNSS antenna family from Antcom is a dual-band GPS L1/L2 antenna. The baseplate is compatible with ARINC 743 mounting hole and footprint requirements. An O-ring seal between the antenna and your platform ensures easy installation.
This interference rejecting antenna features high out-of-band filtering near the Global Positioning System (GPS) L1 frequency band for assured GPS reception in high interference environments.
This product family can be customized to meet your specific requirements.
Benefits
- Sharp out-of-band signal rejection for assured GPS
- Compatible with standard GPS receivers
- Standard ARINC mounting footprint for easy platform integration
Features
- High GPS L1 band filtering for rejecting out-of-band interference
- GPS L1/L2 with M-Code support
- ARINC 743 compatible mounting holes and footprint
- DC power input through RF connector
- Connector options available
- Paint color options available
Technical Specifications
| Typical Out-of-Band Rejection | |
| Frequency Range: | |
| 1526 to 1536 MHz: | < 50dB |
| 1627.5 to 1627.5 MHz: | < 70dB |
| 1646.5 to 1656.5 MHz | < 70dB |
| 1610 to 1626.5 MHz: | < 25 dB above 1610 MHz, < 45 dB above 1613 MHz |
| Electrical | |
| Frequency Range: | |
| L1 GPS | 1575.42 ± 12 MHz |
| L2 GPS: | 1227.60 ± 12 MHz |
| VSWR: | <2.0:1 |
| Impedance: | 50 ohms |
| Polarization: | RHCP |
| Mechanical & Environmental | |
| Weight: | 6.8 oz Typical |
| Temperature: | -55 °C to +85 °C |
| Altitude: | 70,000 ft |
| Vibration: | >30 Grms |
| Typical LNA Performance | |
| LNA Noise Figure: | 3.5 dB |
| LNA P1dB Out: | +13 dBm |
| LNA DC Power: | (3.8 – 15) V < 70 mA |
| Limiting & Filtering | |
| Power Handling: | 1 Watt CW |
Options
Color:
- Gloss White
- Lusterless Gray
- Camo Green
- Lusterless Black
- Desert Tan
Connector:
- SMA
- BNC
- MCX
- MMCX
- Type N
- N-Bulkhead
- TNC
- TNC-Bulkhead
LNA Gain:
- 33 dB High Filtering
Warranty
Antcom products are covered under their one-year standard warranty. Antcom will repair or replace any product which does not materially conform to Antcom’s specifications or that is significantly defective in materials or workmanship, for a period of 12 months from the date of shipment. The warranty is covered in more detail in the Antcom Standard Terms and Conditions document.
Why Buy from Us?
In business since 2004, Canal Geomatics is an authorized dealer for Antcom and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.
Ordering
The 42G1215AF-XX-X GNSS antenna family from Antcom is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
